  • 5 Gallon PC Special Blow Molding Machine

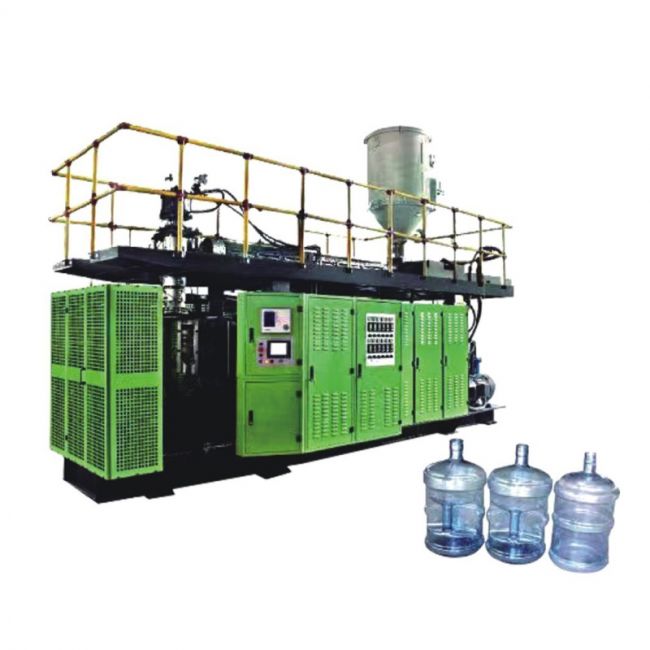

YLB-25L APC 5 Gallon PC Special Blow Molding Machine

1. Normal motor is 45KW, We use servo motor(22KW) save 50% power per hour.

2. It adopts a special exhaust-type screw for PC material

3. Extrusion device could be adjusted in four directions: forward/backward, upward/downward. Change molds more easily and faster. The blow nozzle could be adjusted in six directions: forward/backward, upward/downward, and night/left.

4. It adopts the MISUBISHI PLC control system, which is made in Japan. The hydraulic is YUKEN, oil pump is DENISON, which is made in U.S.A.temperature controller is OMRON brand.

5. The thickness control system is selectable, which adopts MOOG30 point hydraulic servo system.


Tip: You can obtain the price for individual equipment as well as solutions for the entire production line

Inquire Now

5 Gallon PC Special Blow Molding Machine Advantage

  • Die Head Mechanism

    The split flow integrated die head is adopted, without material channeling, and the plasticization is more uniform. The inner wall is electroplated, without material accumulation, and the material embryo is smoother.

  • Plasticizing System

    Frequency conversion motor, hardened gear reducer and high-quality nitrogen cylinder screw, stepless speed regulation, high efficiency and energy saving, stable output.

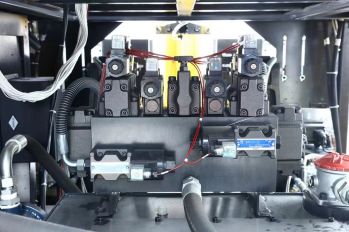

  • Pneumatic System

    Taiwan Jinqi solenoid valve, Japanese SMC pneumatic components and high frequency wear-resistant cylinder are selected for stable operation and long service life.

  • Electric Control System

    Mitsubishi human-machine interface is adopted, and all parameters can be set, modified and retrieved visually. Equipped with mitsubishi plc control system, the system runs stably and accurately.

  • Automatic Trimming Device

    Supporting cutting device and bottom pulling device, fully automatic operation, labor saving.

  • Servo hydraulic opening and closing, beam arm, four points, mold moving mechanism, servo motor and roller screw. Ball type linear guide, high precision, fast speed.

  • Applicable Raw Materials

    PC, PE, PP, etc

  • Equipped with fast screen changing device.​

Blow Molding Machine for Sale

  • 5 Gallon PC Special Blow Molding Machine
  • 5 Gallon PC Special Blow Molding Machine
  • 5 Gallon PC Special Blow Molding Machine
  • 5 Gallon PC Special Blow Molding Machine

Blow Molding Machine Application

Bottle PC Extrusion Blow Molding Machine is used to produce all kinds of hollow plastic containers for foods, toys, beverages, medicines, chemical products, pesticides&detergents, water bottles, milk bottles, medical bottles, oil bottles, plastic balls, cosmetic bottles, lubricant bottles, plastic containers. The Blow Molding Machines are low investment, high efficiency, quick and safe operation, easy for troubleshooting, maintenance and other benefit.

5 Gallon PC Special Blow Molding Machine Specifications


NameUnitYLB-25LAPC

Product max volume (L)L25L

Max. CapacityPCS80BPH
Extrusion unitScrew Diametermm90

Screw L/D RatioL/D38

Oil Pump Driving powerfservo motor)KW22/45

Screw Heating CapacityKW3X16.7

Heating zoneZONE8

Plasticizing Capacitykg/h160(PC)
Clamping unitClamping ForceKN320

Mold Strokemm270-820

Max. Size of Mold(W*H)mm650X850
Die HeadCapacityL1.9

Max. Die Diametermm150

Die Heating CapacityKW3x4.1

Heating ZoneZONE4
OthersBlowing PressureMpa1.2

Air ConsumptionM3/MIN1

Water ConsumptionL/MIN150

Dimension (LX WXH)m6.4X2.3X4.50

WeightTON11.8

Embrace the future of large-scale plastic container manufacturing with our 5-Gallon PC Blow Molding Machine. Experience unmatched efficiency, precision, and adaptability to propel your business to new heights in the competitive market. Elevate your production capabilities and revolutionize your industry with this state-of-the-art solution. Contact us now to explore the endless possibilities of our advanced 5 gallon pc bottle blow molding machine.

5 Gallon PC Special Blow Molding Machine Introduction


YOULI 25L APC 5 Gallon PC Special Blow Molding Machine - the ultimate solution for large-scale plastic container manufacturing. Designed to meet the demands of industrial applications, this 5 gallon pc special blow molding machine combines efficiency, precision, and versatility, making it the ideal choice for businesses seeking to revolutionize their production capabilities.


Key Features of Blow Molding Machine for Sale:


◎High-Volume Production: With a capacity of 25 liters (5 gallons), this blow molding machine for sale is engineered to handle large-scale manufacturing, optimizing productivity and reducing production time.

◎Advanced Process Control (APC): Our APC technology ensures consistent product quality by monitoring and adjusting key parameters throughout the entire blow molding process, ensuring uniform wall thickness and reducing material wastage.

◎PC Special Compatibility: Specifically designed to handle Polycarbonate (PC) material, this blow molding machine for sale enables the production of robust and durable containers suitable for a wide range of industries.

◎User-Friendly Interface: The intuitive control panel allows operators to easily set and adjust the production parameters, minimizing downtime and optimizing production efficiency.

◎Customizable Molding Options: This blow molding machine for sale offers versatility, allowing you to produce a variety of container shapes and sizes, meeting the diverse needs of your customers.

◎Sturdy Construction: Built with robust materials, the blow molding machine for sale guarantees durability and reliability, ensuring a long service life even under heavy-duty conditions.


5 Gallon PC Special Blow Molding Machine Uses:


◎Industrial Containers: Perfect for manufacturing large containers, industrial drums, and storage tanks used in various industries, such as chemicals, lubricants, and petroleum.

◎Water Storage Solutions: Ideal for producing 5-gallon water bottles, commonly used in water delivery services and commercial water storage.

◎Specialized Packaging: Suitable for creating specialized packaging solutions for automotive fluids, household chemicals, and agricultural products.


Engineered to perfection, this pp water bottle blow molding machine redefines large-scale plastic container production. With the ability to handle Polycarbonate (PC) material, blow molding machine empowers your business to craft robust and durable 5-gallon containers, perfectly suited for industrial applications, water storage solutions, and specialized packaging needs. Elevate your manufacturing capabilities, maximize efficiency, and stay ahead of the competition with YOULI's state-of-the-art Blow Molding Machine. Don't miss the opportunity to elevate your business with our Blow Molding Machine for Sale - contact us now to secure your future in plastic container manufacturing.
